Small and portable, this Adjustable DC Regulated Power Supply with 6-way output is a practical power supply for your projects.

With a built-in charging circuit, the power module allows four unprotected rechargeable 18650 batteries (not included) to be connected in series and features 6 independent outputs: 2-way 5V/5A, 1-way 9V/3A, 1-way 12V/2.5A, 1-way 24V/1A and 1-way 1~20V(2.5A) adjustable output.

Each output employs an independent power chip, which allows the board to power multiple devices steadily at the same time. There's also short-circuit protection for every output, protecting it from damages caused by instantaneous or long periods of short circuit.

Note: 18650 batteries not included

Usage & Charging

Charging: TYPE-C charging interface is set on the left side. You can charge it with a 5V 2A phone charger or similar. It needs ~4 hours to be fully charged (varies depending on the batteries used). The charging indicator next to the interface lights up in red in charging and turns off when fully charged. Also there is an indicator at the interface for displaying the battery's remaining electricity quantity.

6-way output: 2xUSB 5V, 9V, 12V, 24V and 1~20V adjustable output. 6 outputs can be used simultaneously. All outputs are designed as DC2.1 interface except USB.

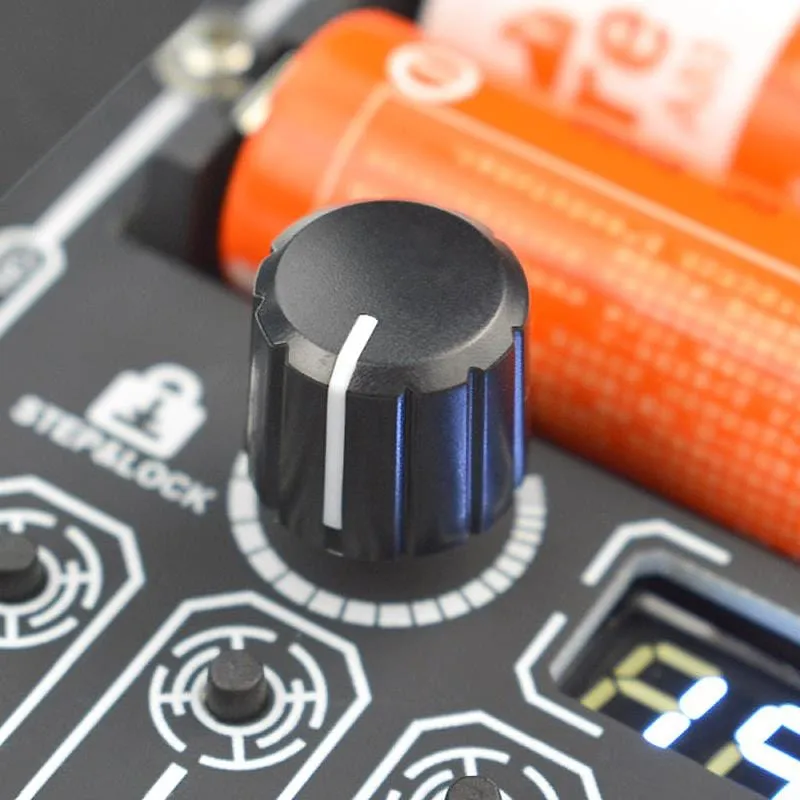

The rotary encoder is used to adjust the voltage from 1 to 20V with an accuracy of 0.1V. The LED digital tube next to the encoder displays the current voltage. Short press the encoder switch to adjust the voltage by 0.1V or 1V, and long press to lock the current voltage. Long press again to unlock it.

There are buttons set on 9V, 12V, 24V and 1-20V respectively for enabling or disabling the power output. Press once to turn on and press again to turn off. The LED of the corresponding output will be turned on when enabled. The USB outputs do not have switch buttons.

Features

• Small and portable
• Built-in charging circuit
• Short-circuit protection

Specification

• Battery Specification: 3.7V 18650 rechargeable lithium-ion battery connected in series (support 18650 battery of 65mm and 67mm, does not support 69mm batteries with protection boards built-in)
• Charging Port: USB TYPE-C
• Charging Current: 2A
• Charging Time: Approximately 4 hours (laboratory data, using 2300mAh battery as test sample)
• Voltage Accuracy: 3%
• Electricity Quantity Display: 4 LED
• Output: 5-way fixed voltage and 1-way 1~20V adjustable output
• Connection Specification:
  • 1. DC2.1 to DC2.1 Connection wire: 50cm long
  • 2. DC2.1 to Alligator Clip: 50cm long
  • 3. DC2.1 to Connector Plug: 50cm long
  • 4. DC2.1 to LattePanda Power Supply Port: 50cm long
  • 5. Wire Rated Carry Current：13A (16AWG)
• USB Port 1：
  • 1. USB-A Interface
  • 2. Rated Voltage: 5.2V
  • 3. Rated Current: 3A
  • 4. Peak Current: 5A
• USB Port 2：
  • 1. USB-A Interface
  • 2. Rated Voltage: 5.2V
  • 3. Rated Current: 3A
  • 4. Peak Current: 5A
• 9V Port:
  • 1. DC2.1 Interface
  • 2. Rated Voltage: 9.2V
  • 3. Rated Current: 2.5A
  • 4. Peak Current: 3A
  • 5. Independent Output Switch
• 12V Port：
  • 1. DC2.1 Interface
  • 2. Rated Voltage: 12V
  • 3. Rated Current: 2A
  • 4. Peak Current: 2.5A
  • 5. Independent Output Switch
• 24V Port：
  • 1. DC2.1 Interface
  • 2. Rated Voltage: 24V
  • 3. Rated Current: 600mA
  • 4. Peak Current: 1A
  • 5. Independent Output Switch
• Adjustable Port：
  • 1. DC2.1 Interface
  • 2. Rated Voltage: 1V~20V
  • 3. Voltage Adjustment Resolution: 0.1V
  • 4. Rated Current: 1A (20V)~2.5A(1V)
  • 5. Peak Current: 1.5A(20V)~3A(1V)
  • 6. Encoder Adjustment, long-press to lock or unlock
  • 7. Independent Output Switch

Package Contents

• 1x Adjustable DC Regulated Power Supply
• 1x DC2.1 to DC2.1 Connection Wire 50cm
• 1x DC2.1 to Alligator Clip 50cm
• 1x DC2.1 to Connector Plug 50cm
• 1x DC2.1 to LattePanda Power Supply Port 50cm
• 1x User Guide

18650 batteries not included
